HEATCORE

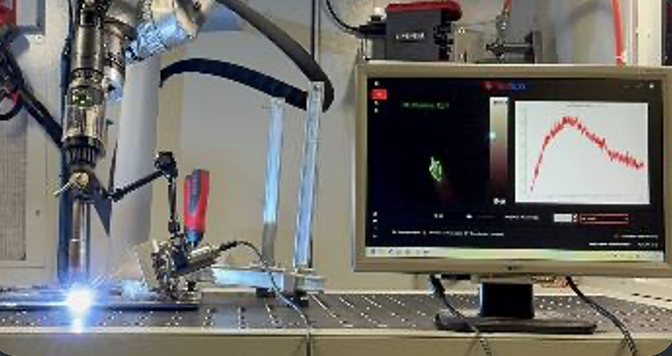

A turnkey solution for real-time thermal monitoring of welding processes, designed for companies seeking rapid implementation and immediate results. This package instantly transforms raw process data into operational visibility, traceable metrics, and concrete support for quality control.

It includes:

• Heatcam C: Industrial LWIR thermal camera, 8-14 µm, with 384 × 240 px resolution, temperature range from -20 to 1500 °C, and 60 mK thermal sensitivity. Acquisition rate up to 25 Hz via Ethernet, with IP67 stainless steel housing and Ethernet interfaces.

• Perpetual HEATCORE software license including real-time thermal data visualization, process metric extraction and display, and Golden Curve analysis with aggregated metrics for each welding cycle, serving as a reference baseline for anomaly detection

• Server CU Weld: Mini PC Fanless, Industrial i5 10210U 8GB RAM 256GB SSD (up to 4.2GHz) 4 Core 8 Thread Mini Computer Desktop Windows 11, 4K Triple Display, WiFi, BT4.2

The system automatically calculates and records the key process indicators for every single welding operation. The platform builds a statistical reference profile (the Golden Curve) based on compliant and optimal welding cycles. This dynamic benchmark makes it possible to compare each new weld against the ideal standard, promptly and automatically identifying any deviation or anomaly.
