Equipment adapted to a pulling force of 110 kN

A set of equipment for suspending and moving cargo along the monorail of the CARBOMECH LTD trademark: designed for transporting equipment and cargo along mine monorails with a profile
I 155, I 140E, I 140V. **The pulling force for moving the transported cargo should not exceed 60 kN/ 110 kN
A set of equipment for suspending and moving cargo along a monorail is a combination of individual components with each other.
Explosion protection marking : 1 Mb c.1. Equipment adapted to a pulling force of 110 kN
1.1.1. Characteristics of the monorail:
- bearing capacity of the rail joint in the direction of suspension, kN ...........................40
- bearing capacity of the joint along the path, kN ........................................................110
- the size of the height of the lower rail, mm.................................................................40
- the maximum slope of the rail on the track horizontally/ vertically, deg......................2/6
- maximum slope of the track, deg................................................................................27

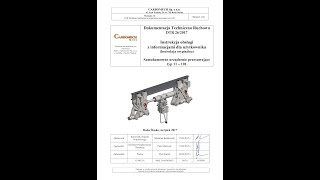

1.1.2. Characteristics of the mobile self-braking device type 11-101:
- maximum thrust force kN ..........................................................................................110
- maximum pushing force kN .......................................................................................110
- maximum travel speed, m/min....................................................................................0.59
- minimum supply pressure, MPa.................................................................................21,00
- maximum supply pressure, MPa................................................................................25,00
- working fluid consumption, l/min................................................................................10,00
- working fluid............................................................................................................... hydraulic oil emulsion HFA
1.1.3. Max. load capacity of the carrier trolleys of type 11-363/11-360.4, kg................4000
1.1.4. The maximum thrust force of the connecting rod type 11, kN ............................110
1.1.5. Max. load capacity of two truck frame type 11-60.4/11-60.5 kg..........................5000/8000
1.1.6. Max. load capacity of a trolley with a console type 11-364/11-160, kg...............4000
1.1.7. Max. load capacity of pallets of the type 11-316/11-318/11-319 , kg..................3200/5000/7000
1.1.8. Ambient temperature range during operation, degrees Celsius.........................+10/-40
1.1.9. Overall dimensions, weight..............................see the manufacturer's technical documentationOur website:
