Equipment adapted to a pulling force of 60 kN for underground coal mines

**The pulling force for moving the transported cargo should not exceed 60 kN/ 110 kN
**A set of equipment for suspending and moving cargo along a monorail is a combination of individual components with each other.
Explosion protection marking : 1 Mb c.

1.Equipment adapted to a pulling force of 60 kN
1.1.1. Characteristics of the monorail: - bearing capacity of the rail joint in the direction of suspension, kN ...........................40
- bearing capacity of the joint along the path, kN..........................................................60
- the size of the height of the lower rail, mm.................................................................40
- the maximum slope of the rail on the track horizontally / vertically, deg.....2/6

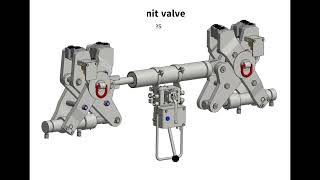

- the maximum slope of the track, deg..........................................................................27 **1.1.2. Characteristics of the mobile self-braking device
20-101-105/20-101.20-105:
**- maximum thrust force kN ..........................................................................................60/20
- maximum pushing force kN ......................................................................................60/20
- maximum travel speed, m/min..................................................................................1,2/3
- minimum supply pressure, MPa................................................................................21,00
- maximum supply pressure, MPa...............................................................................35,00
- working fluid consumption, l/min................................................................................10,00
- working fluid............................................... hydraulic oil emulsion HFA
1.1.3. Max. load capacity of the carrier trolleys of type 20-363/20-360.4, kg..............4000
1.1.4. The maximum thrust force of the connecting rod type 20, kN ...........................60
1.1.5. The maximum load capacity of two trolley frames of type 20-60.4, kg .............5990
1.1.6. Max. load capacity of a trolley with a console type 20-364/20-160, kg.............4000
1.1.7. Maximum load capacity of pallets of type 20-316/20-318, kg ...........................3200/5000
1.1.8. Ambient temperature range during operation, degrees Celsius.........................+10/-40
1.1.9. Overall dimensions, weight.................see the manufacturer's technical documentation

CARBOMECH Ltd  has been a reliable business partner from Poland for over 30 years!
CARBOMECH Ltd was founded in 1993 in response to the need of coal mining companies in the field of mining equipment, which makes it possible to suspend power and mechanical equipment on overhead railway tracks with the possibility of its safe reconstruction for or before the start of the work of the mine "wall" or the face of the road surface.
