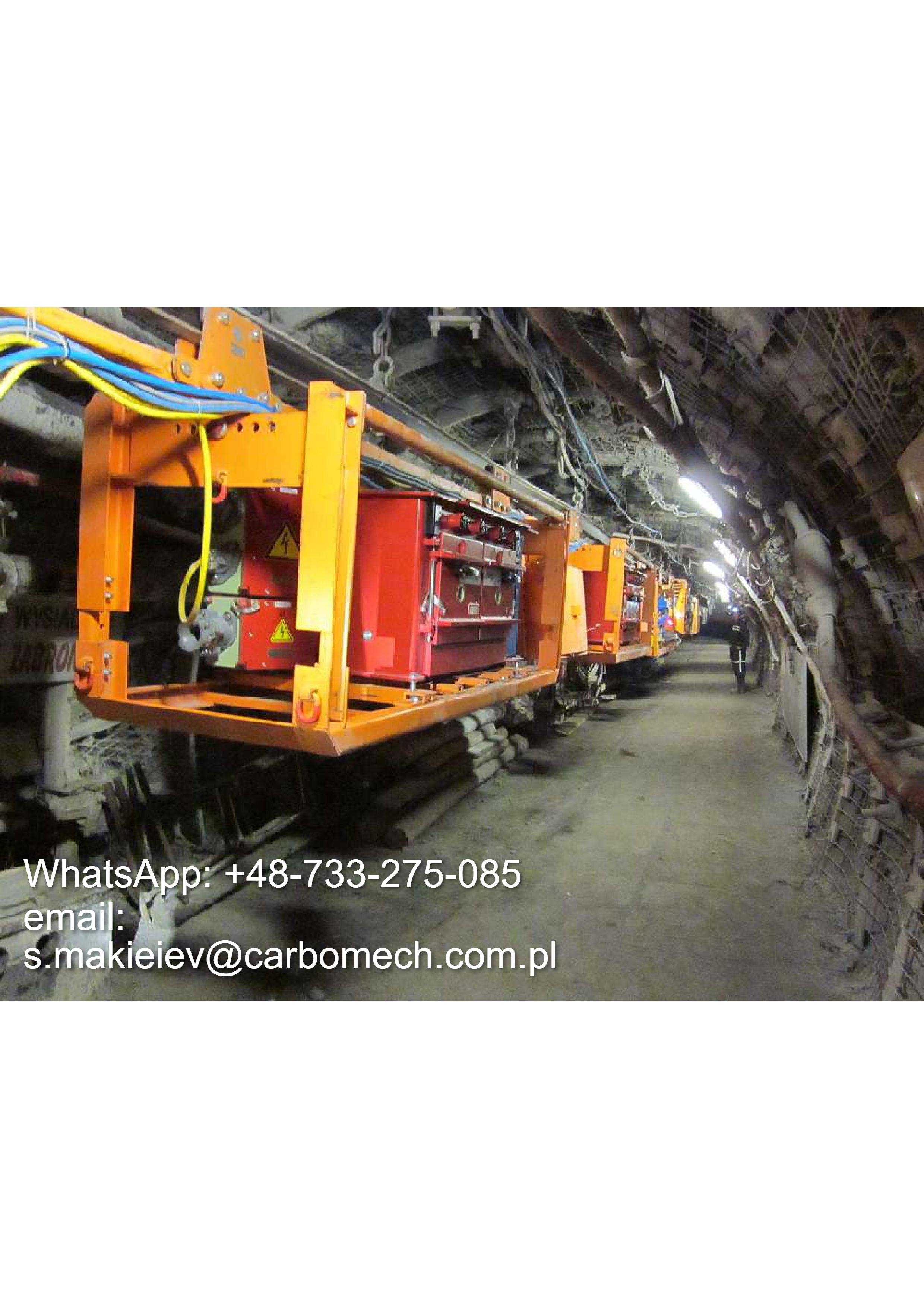

Equipment to underground coal mines

**Equipment adapted to a pulling force of 110 kN
1.1.1. Characteristics of the monorail:
**- bearing capacity of the rail joint in the direction of suspension, kN ...........................40
- bearing capacity of the joint along the path, kN ........................................................110
- the size of the height of the lower rail, mm.................................................................40
- the maximum slope of the rail on the track horizontally/ vertically, deg......................2/6
- maximum slope of the track, deg................................................................................27
1.1.2. Characteristics of the mobile self-braking device type 11-101:
- maximum thrust force kN ..........................................................................................110
- maximum pushing force kN .......................................................................................110
- maximum travel speed, m/min....................................................................................0.59
- minimum supply pressure, MPa.................................................................................21,00
- maximum supply pressure, MPa................................................................................25,00
- working fluid consumption, l/min................................................................................10,00
- working fluid............................................................................................................... hydraulic oil emulsion HFA
1.1.3. Max. load capacity of the carrier trolleys of type 11-363/11-360.4, kg................4000
1.1.4. The maximum thrust force of the connecting rod type 11, kN ............................110
1.1.5. Max. load capacity of two truck frame type 11-60.4/11-60.5 kg..........................5000/8000
1.1.6. Max. load capacity of a trolley with a console type 11-364/11-160, kg...............4000
1.1.7. Max. load capacity of pallets of the type 11-316/11-318/11-319 , kg..................3200/5000/7000
1.1.8. Ambient temperature range during operation, degrees Celsius.........................+10/-40
1.1.9. Overall dimensions, weight..............................see the manufacturer's technical documentation

CARBOMECH Ltd  has been a reliable business partner from Poland for over 30 years!
CARBOMECH Ltd was founded in 1993 in response to the need of coal mining companies in the field of mining equipment, which makes it possible to suspend power and mechanical equipment on overhead railway tracks with the possibility of its safe reconstruction for or before the start of the work of the mine "wall" or the face of the road surface.

**Our website:
**https://carbomech.com.pl

https://lnkd.in/esXgkHkH - ENG

Video:

https://youtu.be/TC34BMeI7Oc?si=t0BN1nlLtYtv1AUr
Carbomech  Ltd   is located in the south of the Polish Voivodeship of Silesia, in the town of Ruda Śląska. We specialize in the design and manufacture of overhead and ground transport systems, electrical and mechanical equipment that feeds drift and longwall mining complexes.
