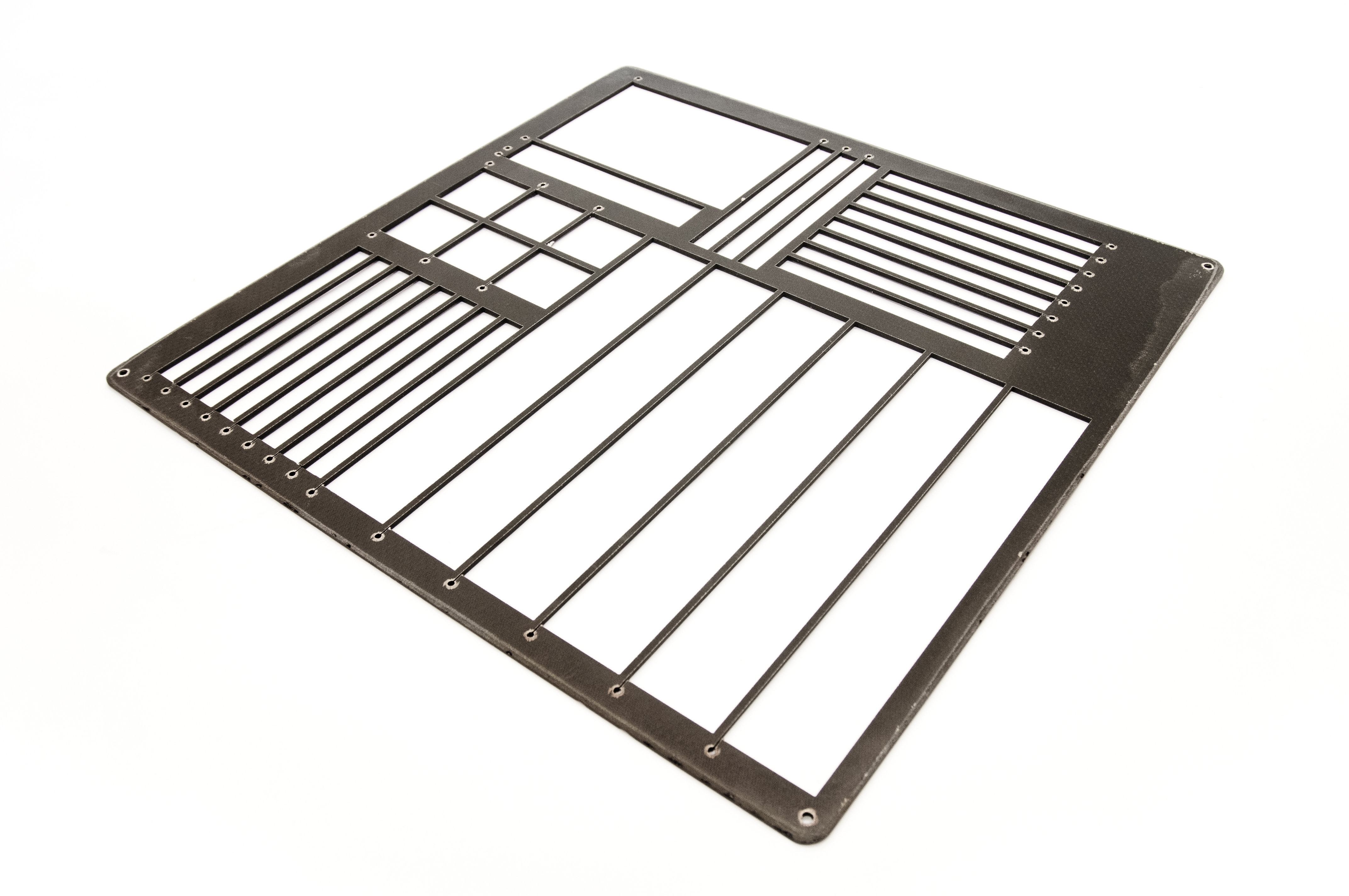

Thermoset & Thermoplastic Coupons for materials testing

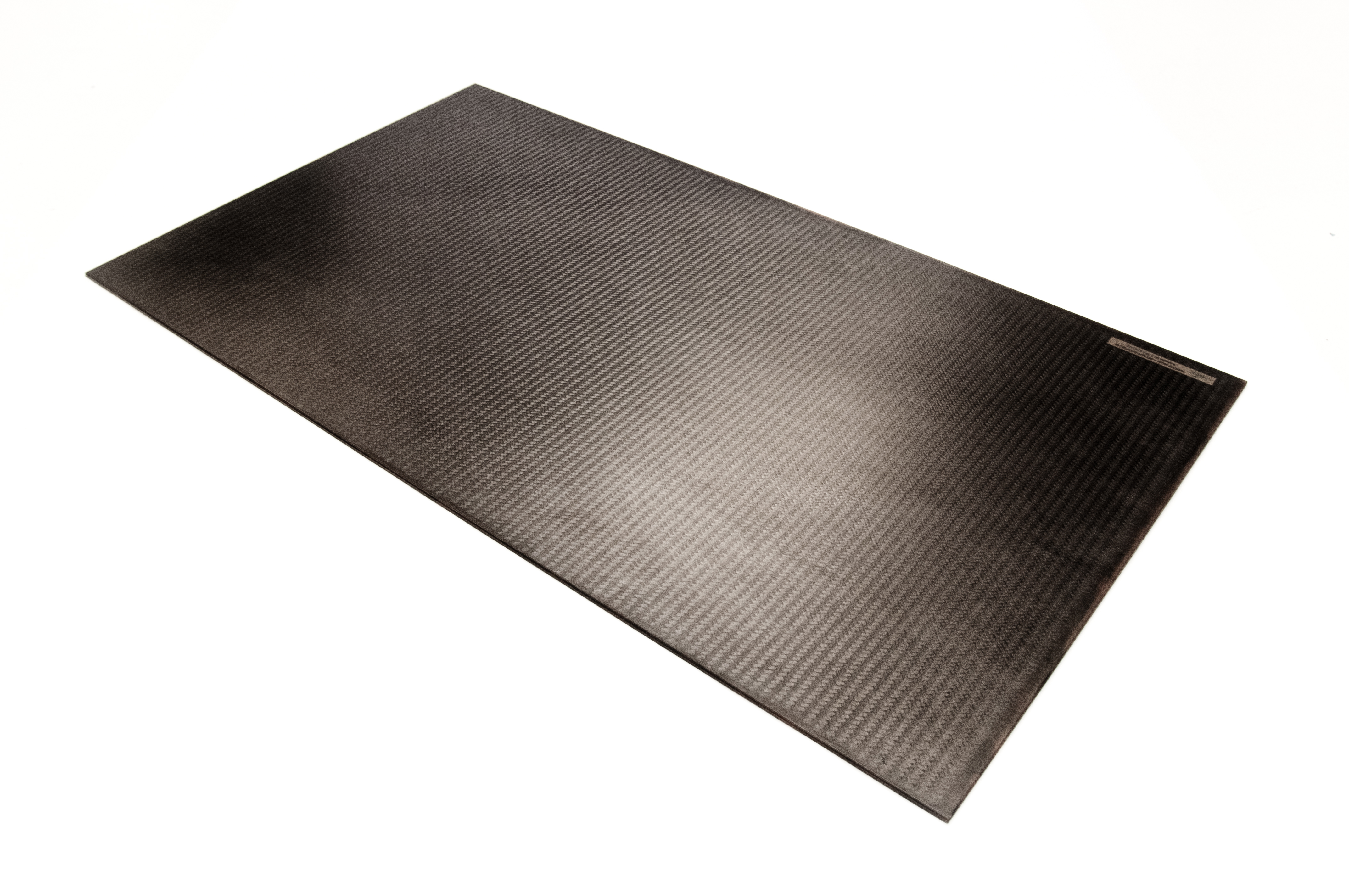

The selection of material and the set-up of process parameters are the heart of our engineering services. Manufacturing of flat panels for coupons is a common task. More complex tools are also used to validate the mechanical performances at higher level (sub-element level).

Our shop is the right place for our customers to manufacture their first full scale parts using RTM state-of-the-art industrial equipment (mold, injection system and workstation). Customers can use Coexpair shop equipment to manufacture plates for coupon manufacturing and material characterization with
existing molds. Demonstrators can be also manufactured in our presses with size up to 4X1.3m

Coexpair specializes in Resin Transfer Molding (RTM) and Same-Qualified Resin Transfer Molding (SQRTM), advanced closed-mold processes that deliver high-performance composite parts with exceptional precision. RTM involves injecting liquid resin into a closed mold containing a dry fiber preform, producing components with excellent surface finish on both sides, tight dimensional tolerances, and high fiber volume fractions for optimal strength-to-weight ratios. SQRTM looks like RTM by utilizing pre-impregnated (prepreg) layups and combining resin injection with compression, allowing for greater control over resin flow and part consolidation than autoclave. These technologies are achieving net-shape, aerospace-grade components with reduced voids and faster cycle times.

These processes offer significant advantages for complex aerostructure manufacturing, including the ability to create intricate geometries and integrated features, which can lead to reduced part count and assembly costs.

All our manufacturing are done on 4.0 workstations, ensuring full logging of data for R&T.

A lot of tools are available for various thicknesses (from 1.09 to 29.60 mm)
