INTEGRATED MOBILE SURVEILLANCE SYSTEM - SIMS-2

❑Gathering information from different type of sensors:

▪optical

▪distance measurement,

▪positioning,

▪recognition.

❑Processing and integrating obtained information into the GIS application running on a ruggedized PC.

❑Transmitting and receiving information to/from other structures.

❑Monitoring the response activities and their results.

❑Storing the data and images needed to prove the identified activities.

❑Possibility to add subsystems for new tasks

LIFE SUPPORT:

❑Air filtering and ventilation system

❑Air conditioning

❑Heating systems

❑Automatic environmental conditions monitoring & control

OPERATION:

❑On rechargeable batteries at least 12 hours without recharging

❑On power generator at least 72 hours without refueling

❑Local electric network

❑Power automatic management

❑Time to ready for operation: 20 minutes

MOBILITY:

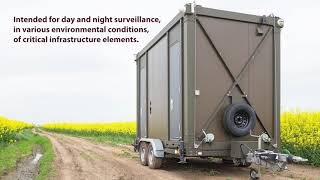

❑Container with aluminum structure on a trailer 02 category

❑External dimensions : 4000mm (13ft-1in) x 2050mm (6ft-7in) x 2400mm (7ft-8in)

❑Automatic levelling system ensures levelling up to a slope angle of 8

STANDARDS:

❑Detection/Recognition/Identification (STANAG 4347)

oMan Target 0.5 x 1.7m : 12.6 km / 5.5 km / 2.8 km

oNATO Target 2.3 x 2.3m: 28.2 km / 9.1 km / 5.5 km

oLaser Range Finder -more than 10 km for NATO target

oElectromechanical telescopic mast -maximum height 7.5m

❑System software with G15 application integrated Safety:

oPerimeter Surveillance System (lPcamera + PIR sensors + NVR)

oFunctional safety monitoring system (mini PC+ X-332 monitoring & logging system + monitoring sensors +alarming device)

❑Communication System :

oSwitch TP-Lin k + Route r 4G/LfECISCO + Tetra Motorola MTM 5400
