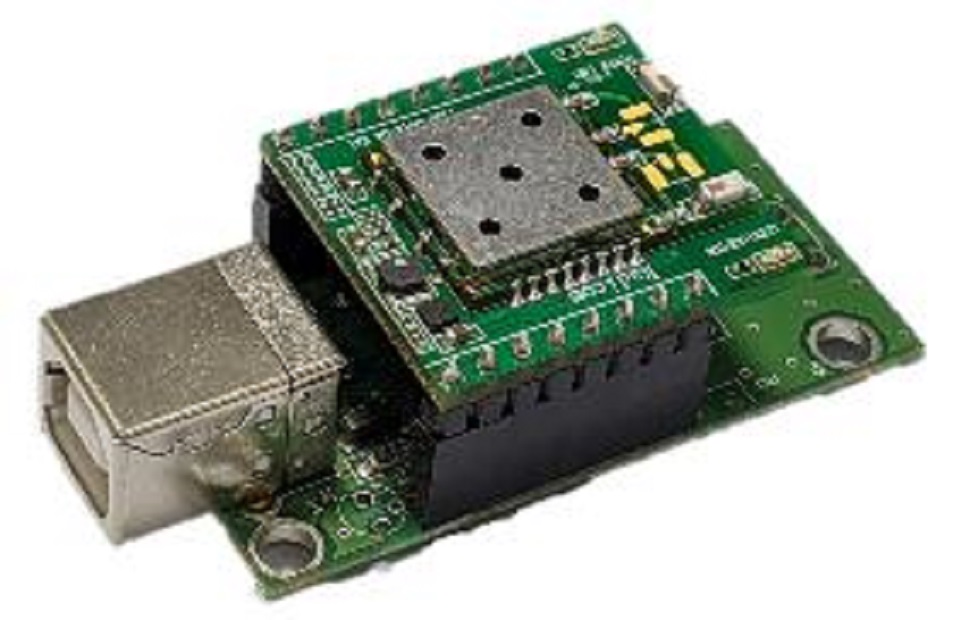

USB WiFi Module-WiFiHU52 Series

Kimberly Chen

Sales & Marketing Manager at BluePacket Communication Technology

New Taipei City, New Taipei City, Taiwan

About

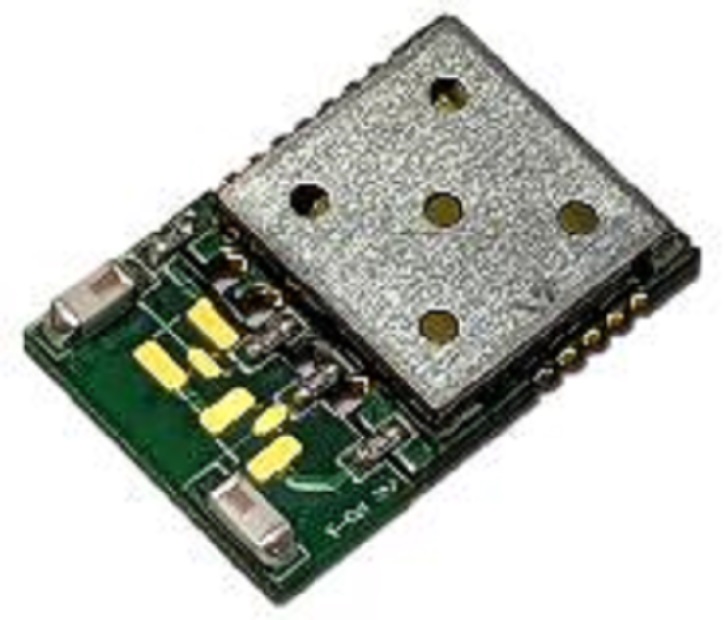

WiFiHU52 series is a 5G/2.4GHz WiFi module that easily adds connectivity to virtually any processor-based device. The module is IEEE802.11 b/g/n/ac™ 1T1R WLAN with USB 2.0 interface.

With reliable transmissions, this USB Wireless Ethernet (WLAN) device has extended transmission and receiving ranges with good minimum sensitivity. For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK) and OFDM baseband processing are included to support all IEEE 802.11a, 802.11b and 802.11g data rates. The compatible coding rate of 1/2, 2/3, 3/4, and 5/6 provides up to 433.3Mbps for IEEE 802.11ac with MIMO-OFDM.

  • Small size: 0.59” x 0.56” x 0.11”(H)

  • Extended temperature

  • Complies with USB 2.0 for WLAN

  • Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

  • Support 802.11ac 1x1,Wave-2 compliant with MU-MIMO STA mode

Application:
 Ethernet USB adapter
 Remote connectivity
 Remote monitoring and control
 Test and measurement equipment
 Network gateway adapter
