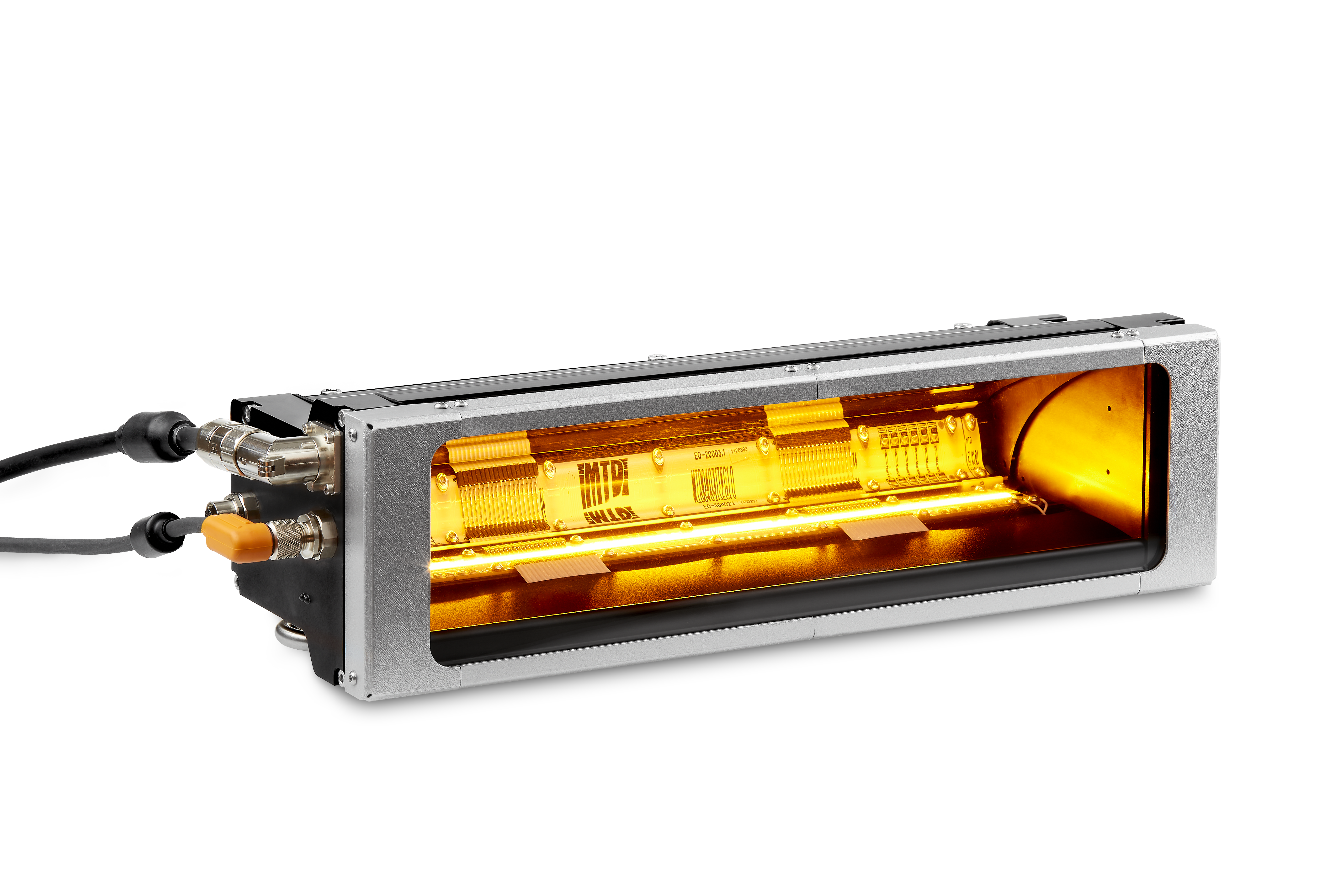

MTD-LED HSL2

The hyperspectral SWIR light MTD-LED HSL2 provides a powerful and durable illumination solution for advanced spectral imaging applications. Using chip-on-board technology, up to 14 different SWIR wavelengths are combined into a homogeneous broadband spectrum. Each wavelength can be individually controlled, allowing precise adaptation to sensor characteristics and specific material properties.

Designed for large-scale applications, the HSL2 is available in lengths of up to 3 metres and offers a working distance of 350–400 mm. Integrated temperature control ensures a stable and consistent spectral output, even under demanding operating conditions.

Special Features

• Broadband LED spectra in the range of 1000–1950 nm

• Lengths up to 3 m | Weight approx. 10 kg/m

• Optimised reflector optics available as line or area illumination

• No significant heat emission

• Liquid or air cooling with integrated temperature control

• Programmable spectral characteristics

• Red pilot LED for precise positioning
