Metrology 4.0 – Dimensional Inspection & Interface Verification

Dogram provides dimensional inspection and verification services for components, assemblies and large-scale structures throughout manufacturing, assembly and installation.

We select the most appropriate measurement technology and methodology for each project, according to its geometry, tolerances, environment and required level of accuracy.

Our services include:

• Verification against design tolerances
• Deviation mapping and dimensional analysis
• Flange flatness and connection analysis
• Alignment and position verification
• Virtual assembly of critical interfaces
• Independent review of measurement procedures and reports
• Technical QA/QC documentation

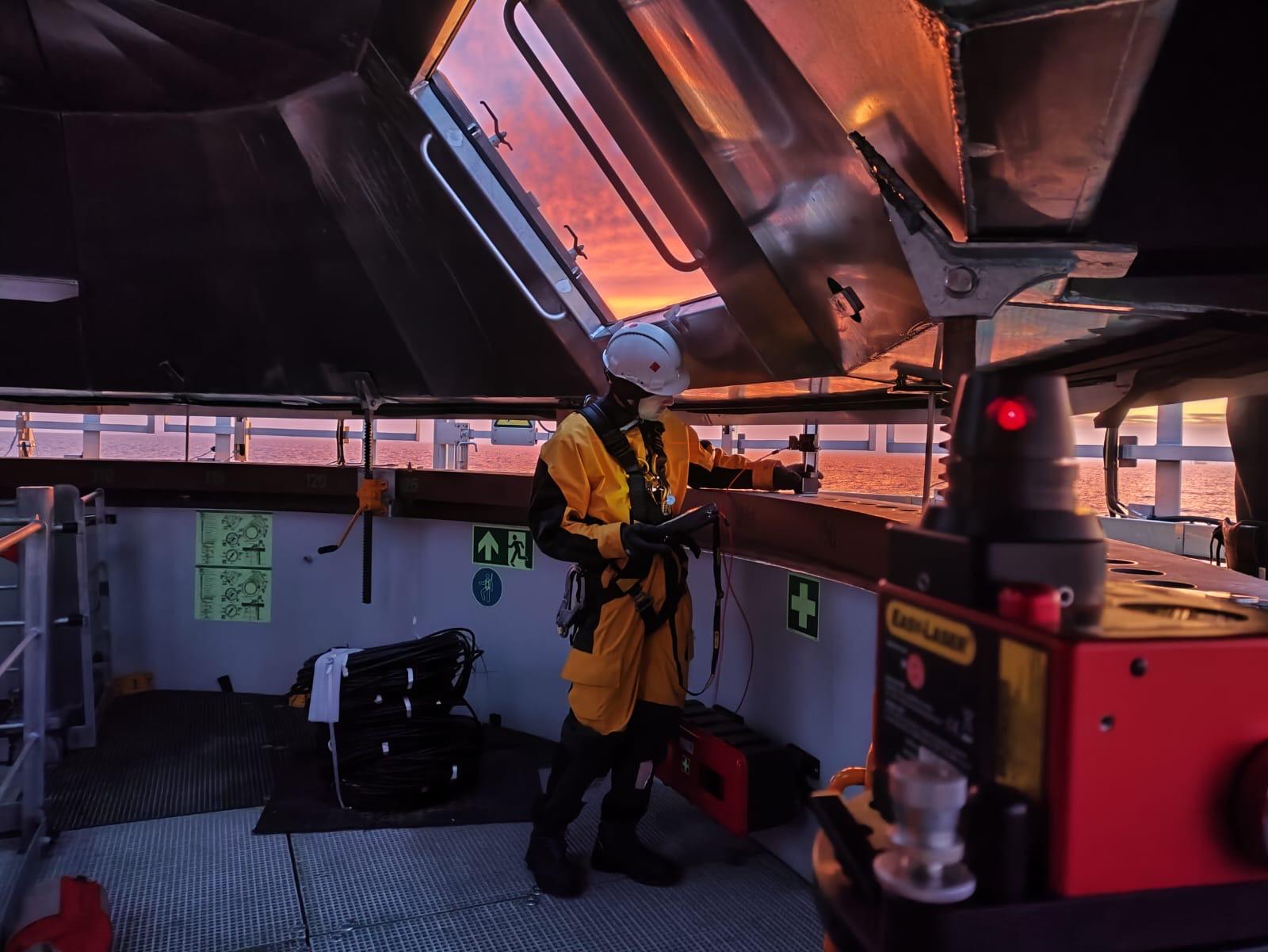

Our technology portfolio includes laser trackers, articulated measuring arms, 3D laser scanners, portable measurement systems, total stations, photogrammetry and UAV-mounted LiDAR.

In offshore wind, we have performed dimensional verification of monopiles, transition pieces, flanges and secondary structures during fabrication and prior to installation.
