CURRENT PULSE GENERATOR (ATLAS ICU) for HDRMs

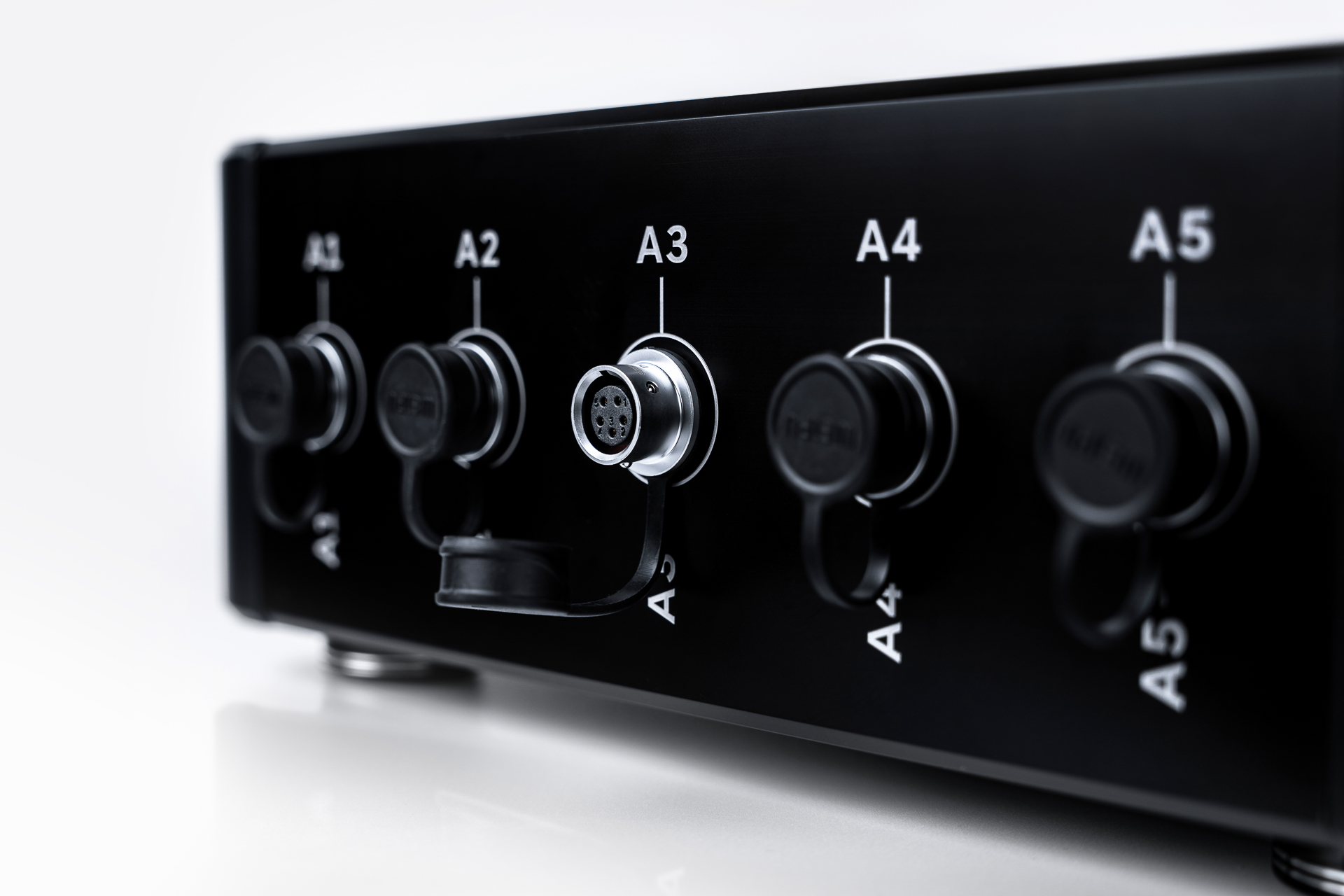

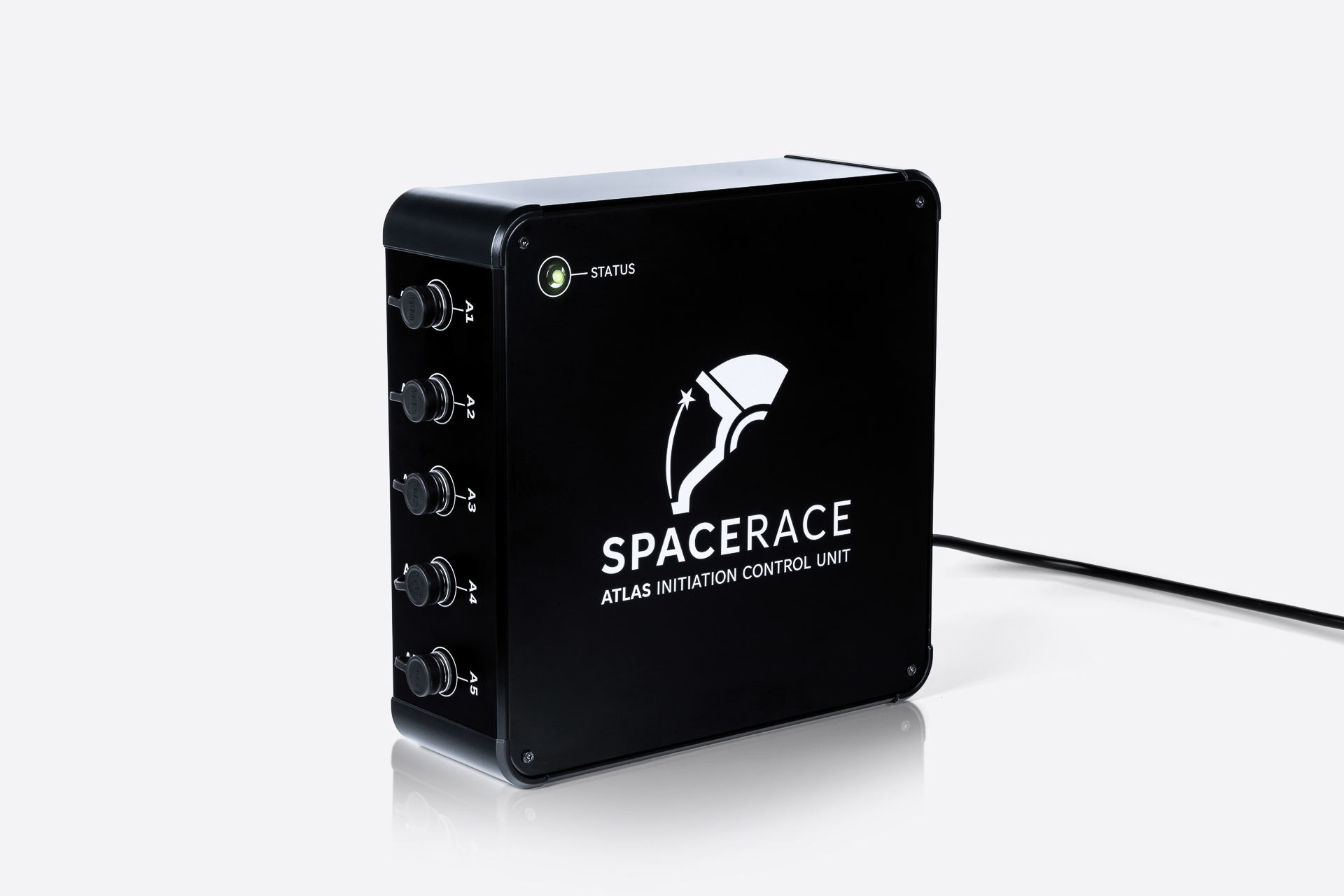

The ICU (Initiation Control Unit) is a user centered control electronics designed for easy initiation of ATLAS actuators in ground test campaigns of space mechanisms. With intuitive control software, configuration of release scenarios becomes simple - achieved within seconds with a few clicks on your PC. This unit ensures guaranteed synchronized activation of up to 5 actuators (10 independent power lines) via current pulse with millisecond precision.

The unit is able to deliver a current pulse up to 10 A (achieveable value depending on circuit resistance). Although developed for ATLAS, it is compatible with any fuse-based non-explosive release actuators and the completely enclosed design is cleamroom friendly. Do not hesitate to contact our technical team to discuss the compatability with your release actuators.

The ICU integrates robust safety features. Activation from an internal memory and a tripled safety barrier ensures enhanced protection during actuator initialization, effectively minimizing potential risks and ensuring security of operation.

The ICU package includes the unit itself, accompanied by a laptop with user-friendly software for seamless control, and a dedicated transportation box for convenience and protection during transportation and storage.

Applications

• Release nuts

  • Solar array HDRMs

  • Antenna/boom HDRMs

  • Satellite separation mechanisms

• Pin pullers

  • Deployers

  • Safety lids

  • Launch locks

• Any current pulse activated device including heritage release nuts and pinpullers

Key features

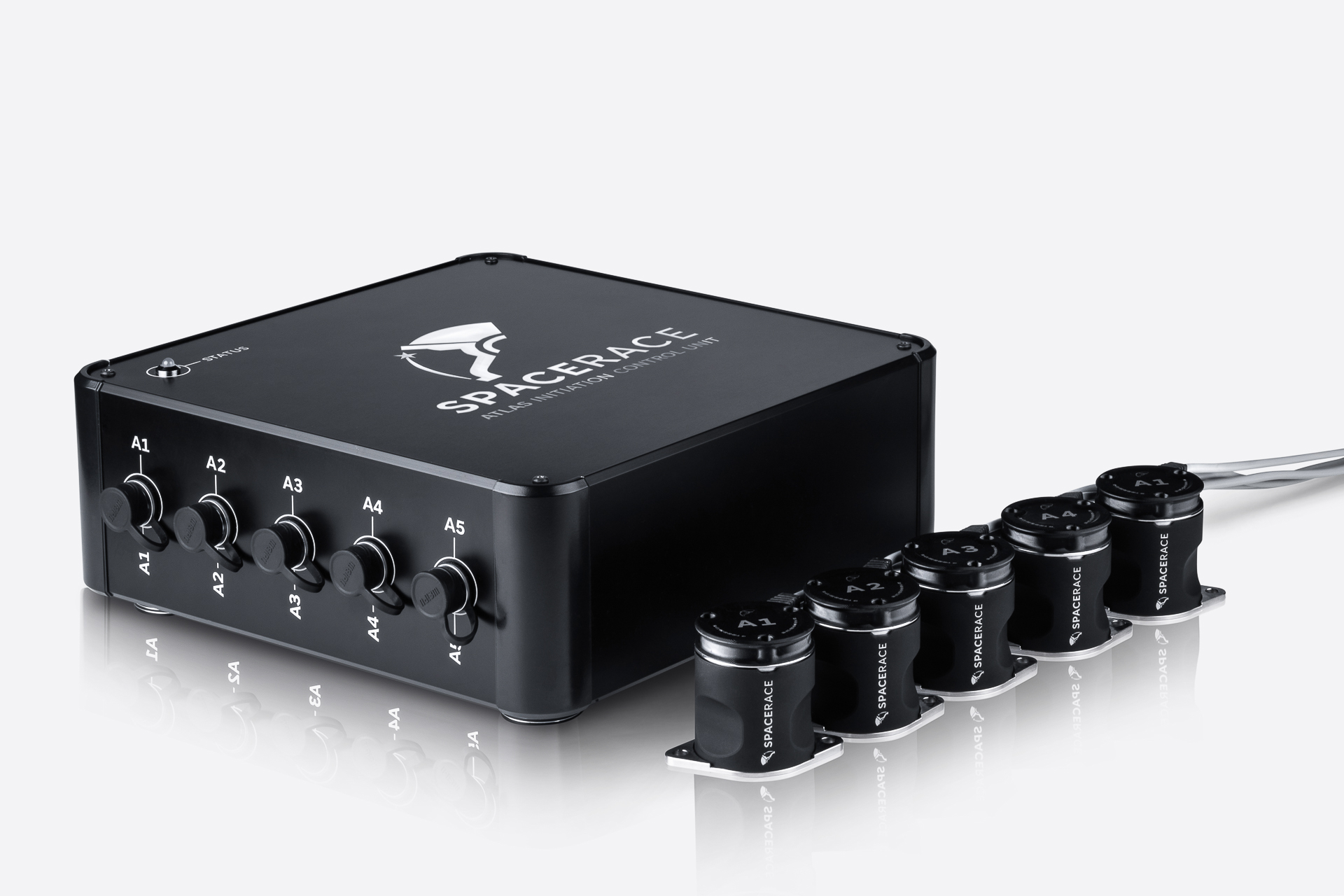

• Delivered as a full set (ICU, PC, cables) in a convenient rugged case

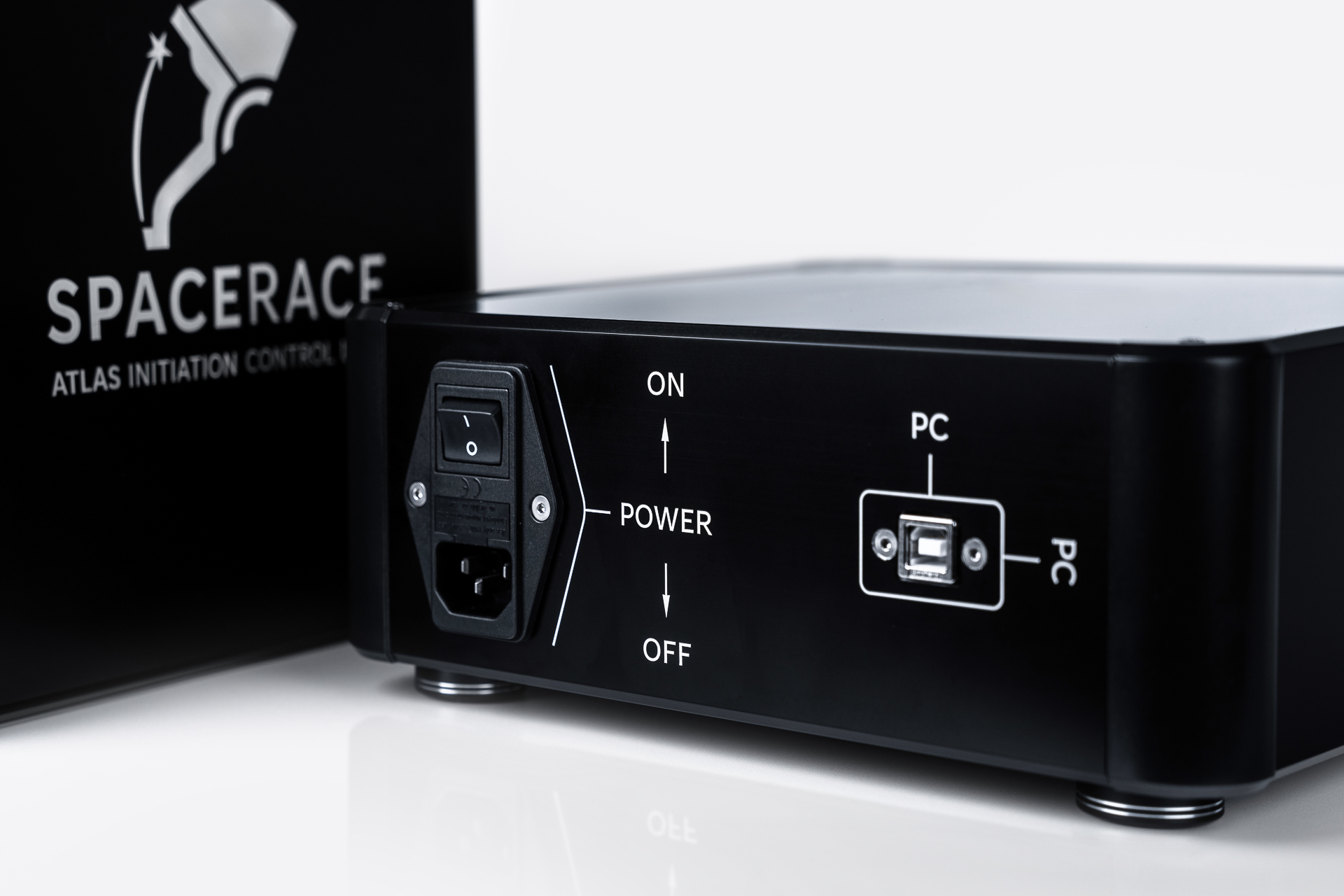

• Actuation: PC controlled for multiple actuators

• User friendly control app - easy configuration of release scenarios (synchronicity, delays...)

• Actuation steps: Activation – Arming - Fire, activation from internal memory

• Pulse accuracy: < 10 ms - built for synchronization of multiple units

• Cleanliness: Closed design - clean room compatible

Customization

• Customized connectors for non-SPACERACE devices

• Customized power plugs

• Independent initiation of redundant circuits - upon request

• Coupling of multiple ICUs for large number of synchronized power lines - upon request

Flight heritage

• In an ordinary use in usual AIT conditions

Export control

No export control
