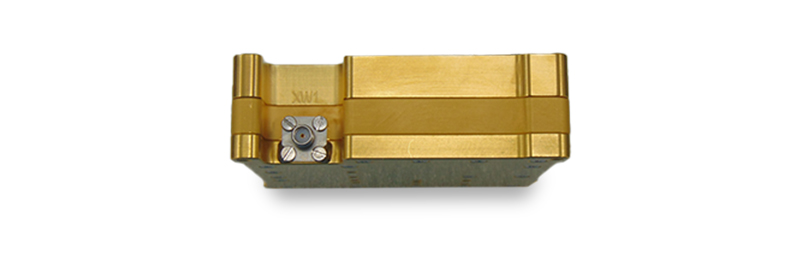

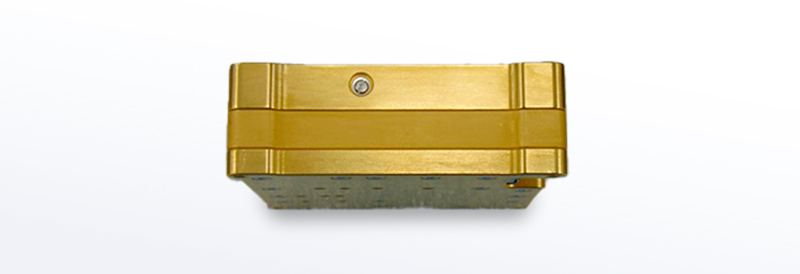

X-Band Satellite Data Transmitter (1Gbps)
Asst. General Manager at Azista Space
Hyderabad, India
About
Key Highlights
-
High Data Throughput: Supports data transmission up to 1 Gbps, ideal for high-resolution payloads and advanced satellite missions.
-
Compact & Lightweight: CubeSat-compatible form factor (87 x 93 x 30 mm³, 360 g) designed for easy integration with nano/micro/small satellites.
-
Flexible Modulation Options: Supports QPSK, 8PSK, 16APSK, and 32APSK for optimized link performance.
-
Error Correction & Reliability: Implements DVB-S2 standard coding with adaptive modulation to maximize throughput in varying signal conditions.
-
Wide Frequency Range: Factory settable 8.1–8.5 GHz transmission frequency.
-
Robust Interfaces: Customizable LVDS/CMOS data interfaces and RS-485, I2C, or CAN-2B for control and telemetry.
-
Durability & Space Readiness: Radiation tolerance >6 krad, SEL tolerance >40 MeV·cm²/mg, and extended temperature range (-20 °C to +50 °C).
-
Power Efficient: Operates on 12 V (11–16 V), consuming 22 W peak power with built-in overcurrent protection.
-
Long Operational Life: Mean Time To Failure (MTTF) of 250,000 hours, ensuring reliability for long-term missions.
-
Ease of Integration: SMA RF output, Micro-D connectors, and compact design for plug-and-play satellite integration.
