HP2 - High Performance Insulating Flange
About
High Performance Insulating Flanges from ISOflanges GmbH are used in a variety of applications such as oil & gas pipelines, gas distribution and compression stations and in gas pressure regulation (and measuring) stations.
Technical Benefits:
-
High mechanical strength thanks to the compact construction
-
Metal-to-metal contact seals
-
compliance with PED 2014/68/68/EU and european gas regulations
-
Suitable for 100% hydrogen
-
High-temperature design in accordance with DIN EN 1775
-
Special designs for your specific application (DIN & ASME)
-
Stable against occurring pipe forces
-
all products and designs are third party tested

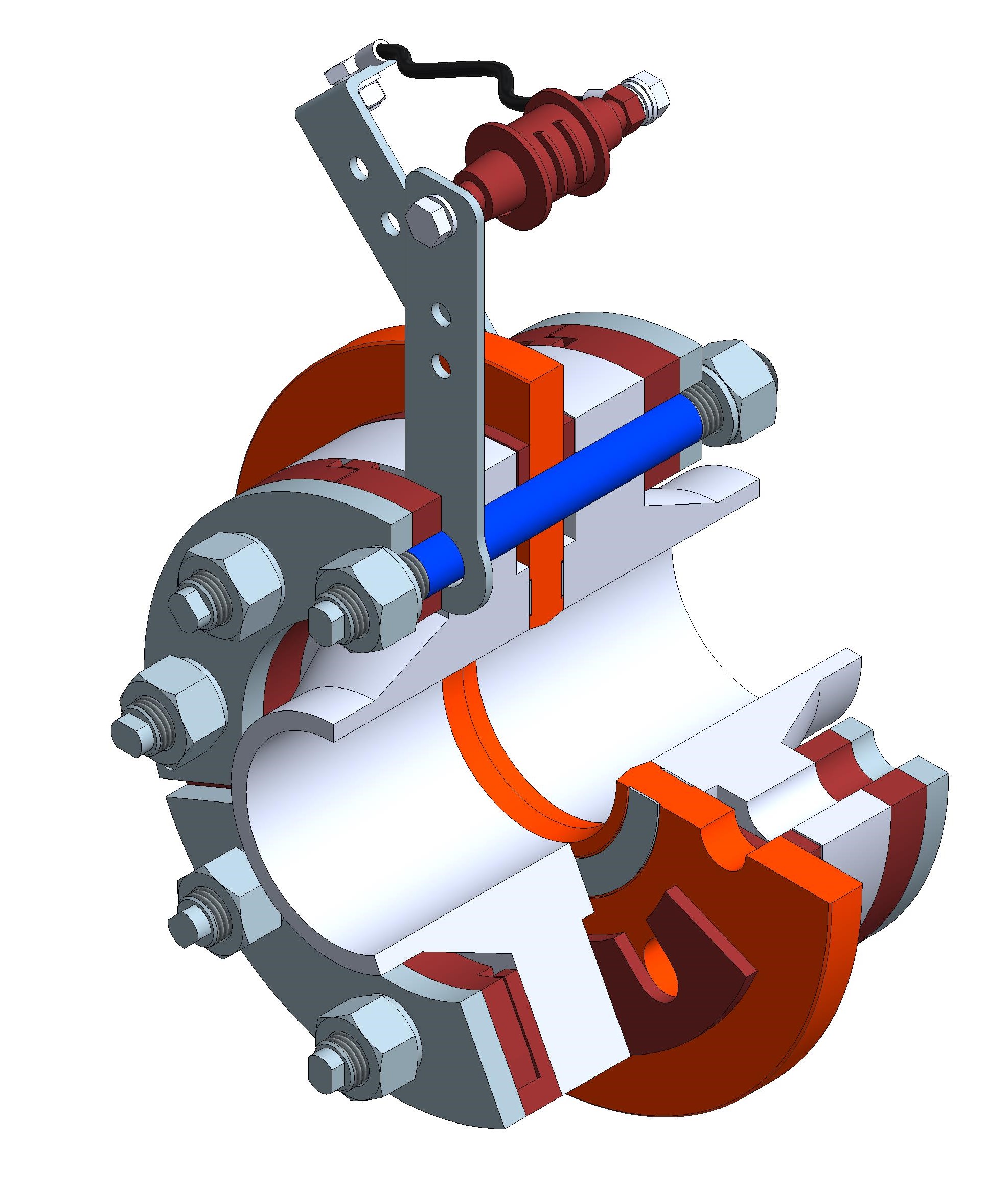

The HP2 insulating flange design utilises the largest possible contact area on the weld neck flange face by means of insulating rings and thrust rings; as a result, the corrugated gaskets are compressed evenly. A block flange connection can be achieved through the additional use of compensation plates between the insulating flange and the weld neck flanges. This enables maximum bolt tension and thereby a high bolt preload.
Block flange connection:
-
High torsional rigidity
-
Utilisation of largest possible contact area
-
Maximum screw tension
-
Maximum operational reliability
-
Maximum seal durability
-
Minimal inspection and maintenance requirement
-> Maximum Quality with Minimum possible Afford!
Get in contact with our representative Michael Goedeke to get more information.
