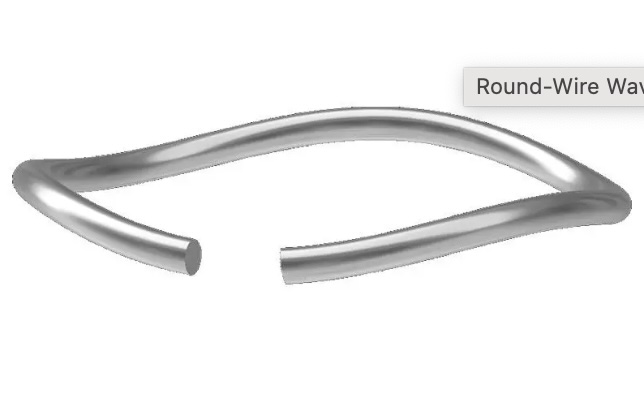

Round-Wire Wave Springs

Technical Advantages

• Increased loading capacity vs flat-wire wave springs.

• More accurate loading capacity vs. traditional springs.

• Reduce radial space vs traditional springs, flat-wire wave springs and disc washers.

• Less material used in making round-wire wave springs, allowing for a lighter weight product.

• As round-wire wave springs are coiled and not stamped, there’s less waste. This is especially important for exotic alloys and custom parts.

• Standard sizes from 0.5″ through 6″ (12.7 – 152.4 mm)

Round wire wave springs offer comparable compression loads, but with the additional benefit of improved load accuracy and up to a 25% reduced radial cavity. The significantly reduced section width reduces the required radial space, thus benefiting overall component size and weight which can be critical design considerations.
