HYBRID GAS REMOTE READING

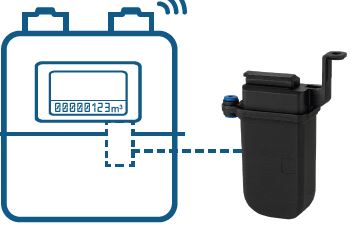

The HYSPI is an AMR module mounted on existing mechanical (diaphragm) gas meters or connected to the impulse output of commercial meters and volume correctors using cable connectors.

The device communicates the gathered data on the gas flow volume to the CLOUD service in the form of a load profile at prescheduled time spans (typically, consumption per hour is transferred every 24 hours).

The interface system stores the data securely in the cloud and enables the end user to export it (automatically), view it, and analyse it (graphs, tables, etc.).

Alarms due to tampering events or other extraordinary events are communicated immediately.

The whole system works completely automatically and can be parameterised remotely (load profile, communication schedule, alarm thresholds, data export, etc.).

Key Features:

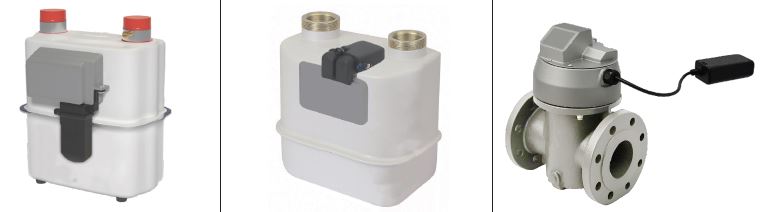

• Fully integrated with many gas meter types (domestic and commercial)

• Tamper detection sensors for attempts with magnets, shaking, or hitting

• Replaceable batteries enabling 10–12 years of operation

• Internal antenna with option for external antenna

• Suitable for indoor and outdoor installation

• Electronic circuit designed for severe environmental conditions

Benefits:

• Smart automatic meter reading

• Total volume at base conditions for each tariff zone (F1, F2, F3)

• Current date and time

• Automatic data export
