Fuse Holder

**Midi Type Fuse Holder;
**
Use with bolt on type fuses up to 200A. Includes Protective cover & terminal protectives.
M5 threaded studs and hex-nuts with lock washers.
Modular, to create multi-position holder.
Fuse not included. But fuse can added on request.

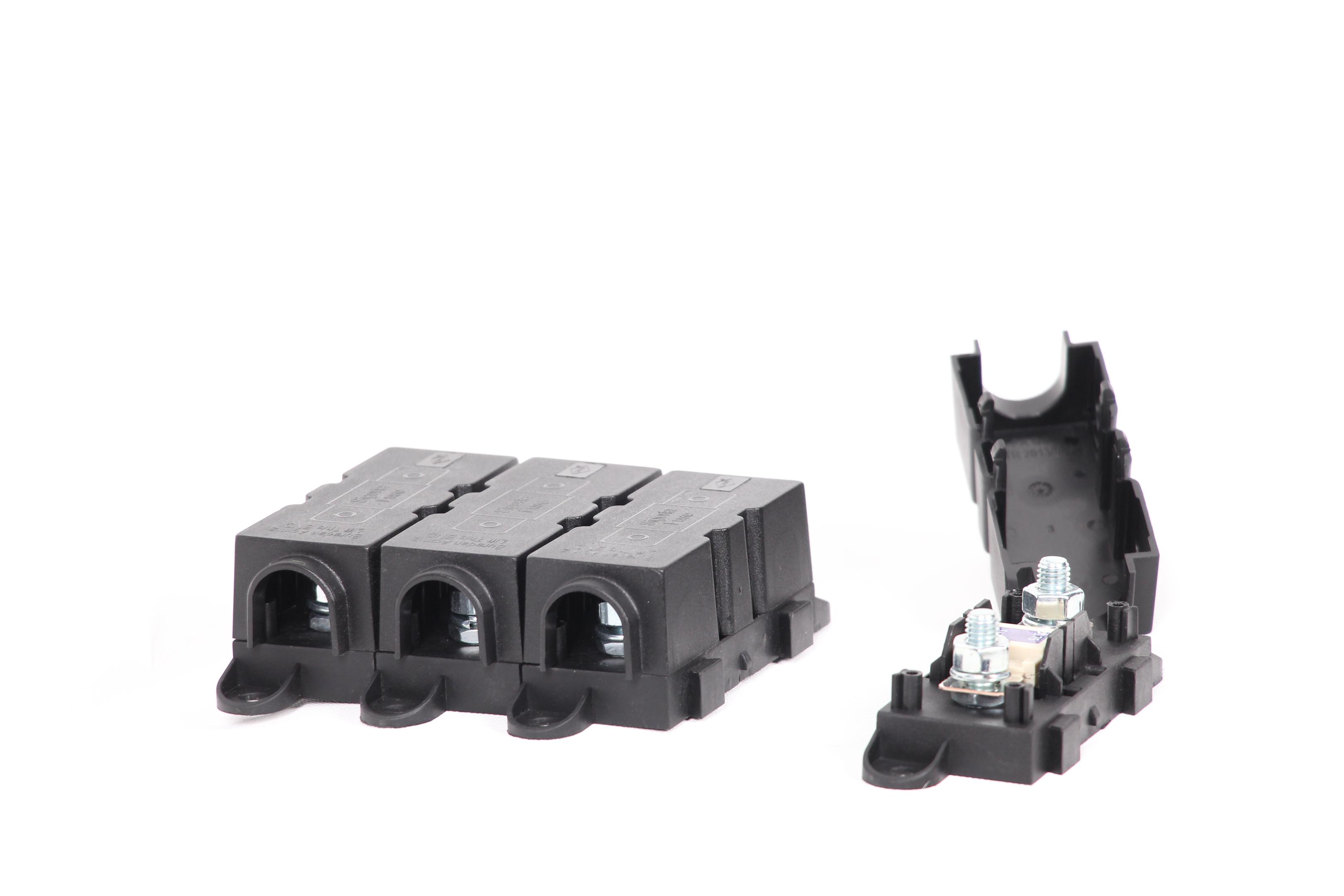

Mega Type Fuse Holder;

Use with bolt on type fuses up to 500A. Includes Protective cover & terminal protectives.
Includes M8 threaded studs and hex-nuts with lock washers. Modular, to create multi-position fuse holder.
Fuse not included. But fuse can added on request.

MegaType (double)Fuse Holder;

Use with bolt on type fuses up to 500A. Includes Protective cover & terminal protectives.
Includes M8 threaded studs and hex-nuts with lock washers.
It is a creative new generation fuse holder like a Lego.
It can be used alone for 2 pieces Mega type bolt down fuses. Also it can be joining with each other itself, no need any additional jointer or material.
No limit for joining quantity to each other, it is possible to add any quantities on both sides.
It can be combined with our single Mega fuse holders FH1002B & FH1002BC.
It can be combined with our single Midi fuse holders FH1001B & FH1001BC.
Same time Mega (FH1002B & FH1002BC) and Midi (FH1001B & FH1001BC) fuse holders can be combined.
Also it can be used as a distribution boxes for main electrical lines.
Due to the joining with our other fuse holders, it can be used as combination of Midi/Mega fuse holder.
Due to joining possibility; User can make a creative own design. We can supply fuse holders with all type of cooper busbars and fuses on request of the customer

Automatic Fuse Holder;

6 position Fuse Holder for Resetable Thermal Fuses.
Heat resistance body material.
Silver plated, screwed and faston type terminals.

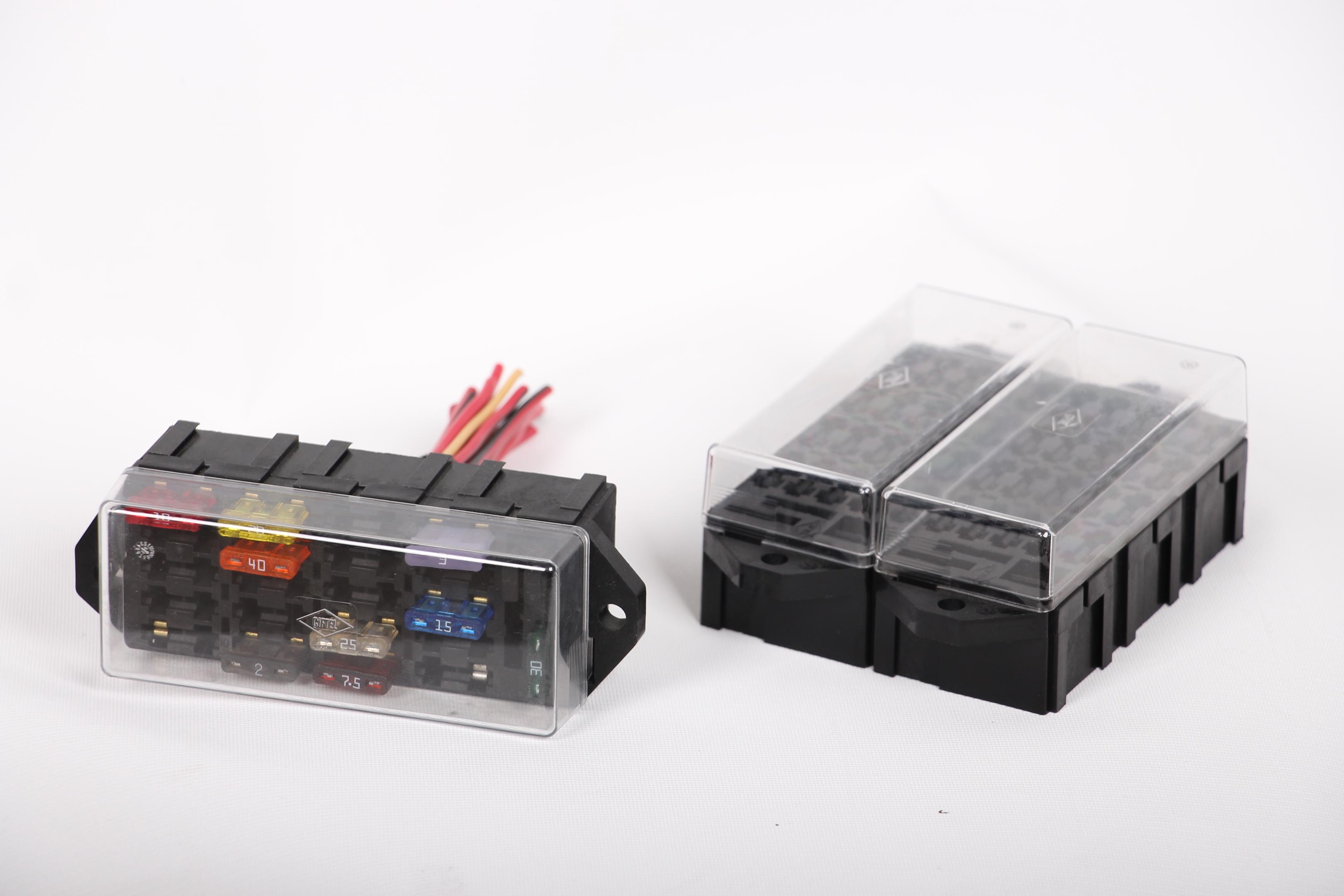

Modular Fuse Holder;

Original design. It is moduler, so can be used by assembling each other at any size, no need any insertion part for joining each other. It is very solid and rigid when joined. It has air circulation canal to cool itself automatically. It has two receptacles places for spare fuses & one fuse puller. The fuse puller can be accessible at every time. The fuse terminals are directly connected to the fuses, there is no extra connector between fuse and fuse cables. The terminals can be used with spring clip or without spring clip. The connection flanges are asymmetric and this prevents any wrong assembling. The cover canals are also asymmetric so that cover can not be connected reverse direction. The material of fuse holder is made of special thermoplastic which is resistant to heat and stroke. Modular Fuse Holder is patented with its all characteristics and innovations.

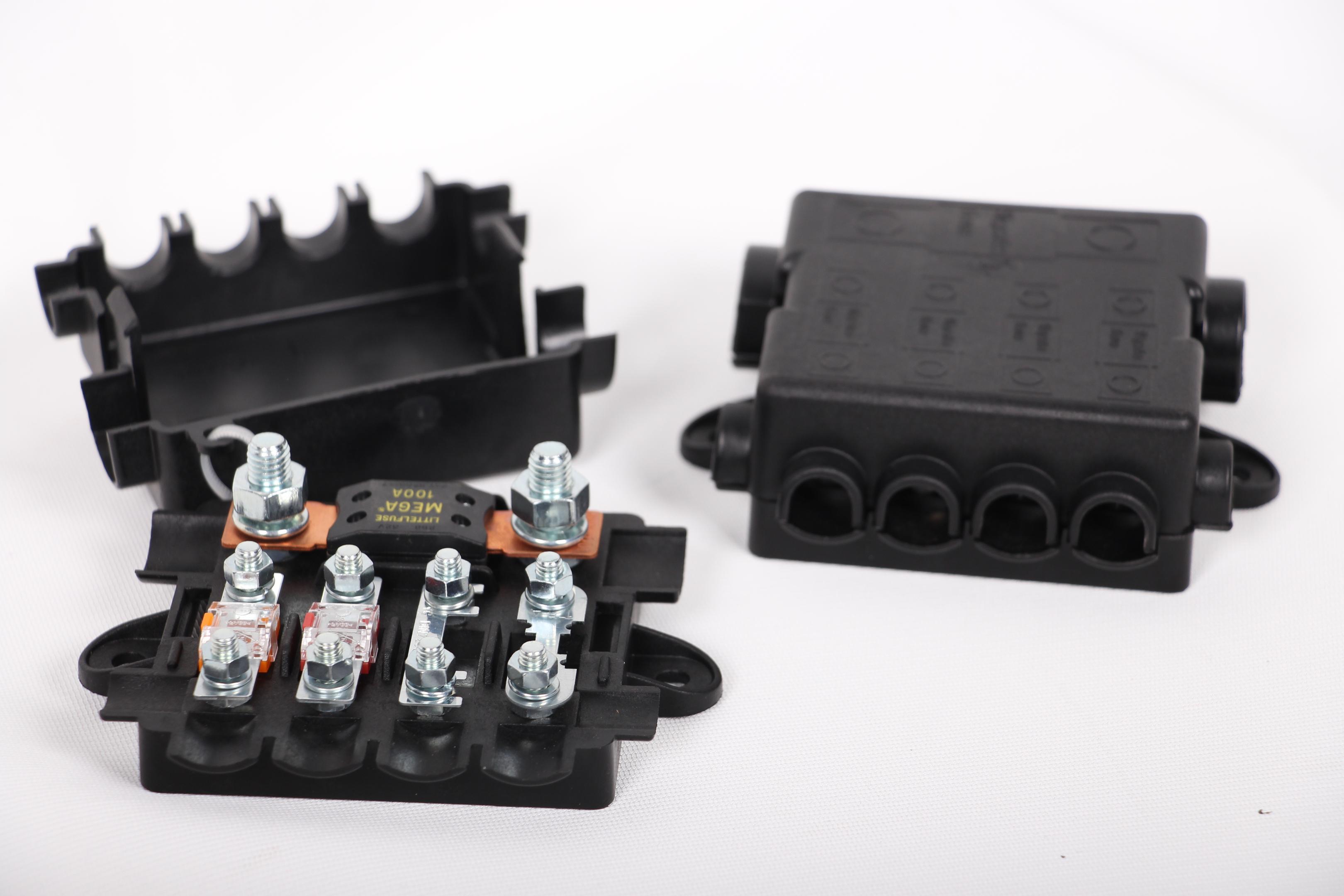

Combi Fuse Holder;

Use with 1 piece bolt on type (Mega Type) fuse up to 500A and 4 pieces 100A or 200A (Midi Type) fuses. Includes protective cover and with terminal protectives. Includes M5 and M8 threaded studs and hex nuts with lock washers. Copper buss bars are included. Fuses are not included, but can be added on request.

Battery Fuse Holder;

For bolt on type fuses up to 500A (for MegaType) and 200A (for Midi/Strip Type). M5 and M8 studs and hex-nuts with lock washers. Copper buss-bar and battery pole terminal are included. Fuses, can be added on request.

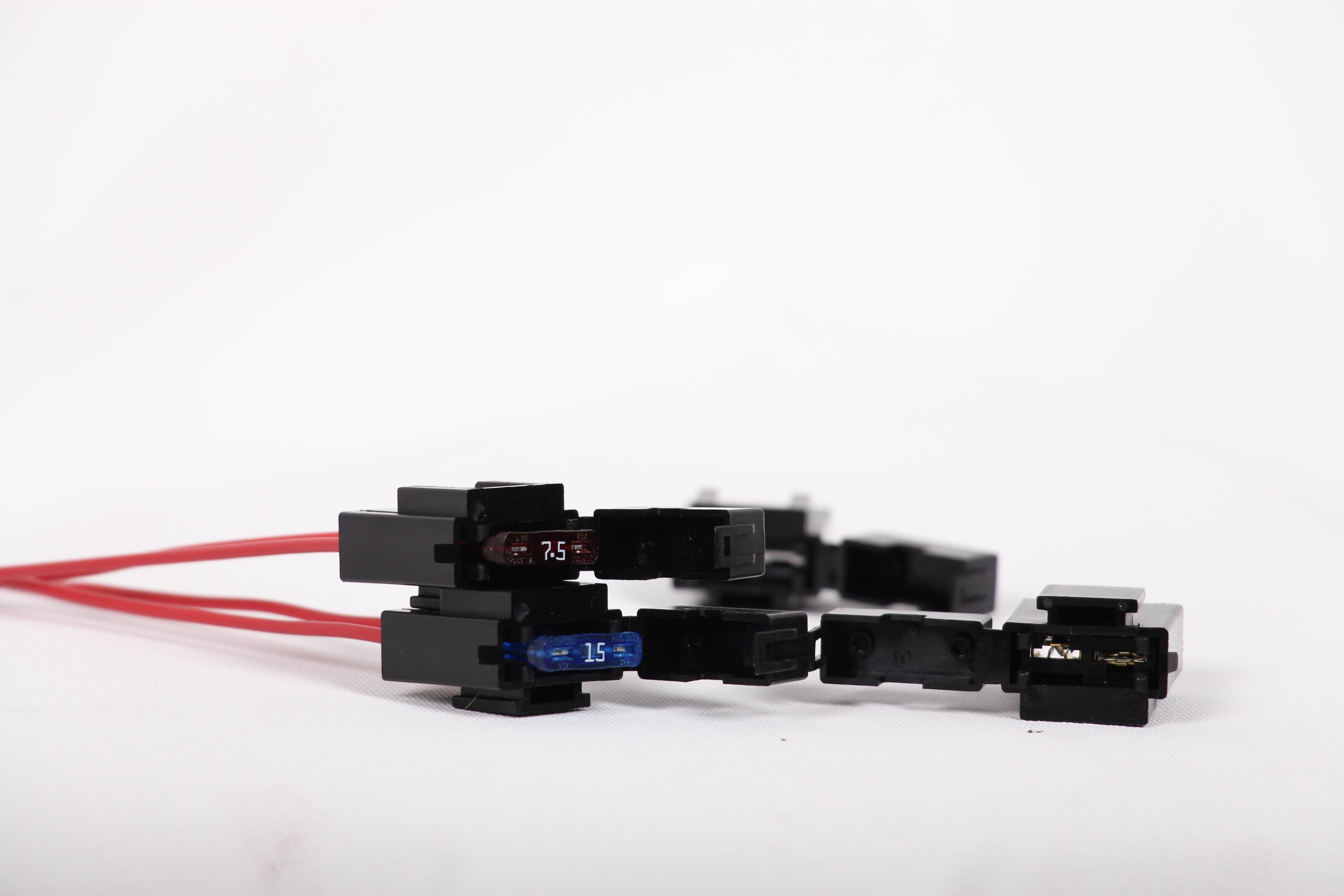

Single Fuse Holder;

Single Fuse Holder for Blade type (Plug-In) fuses up to 40A
Attachable each other.
With protective cover.

**Fuse Puller;

**Allows easy fuse removal and replacement.
