Modular Floating Hydrokinetic Energy Stations

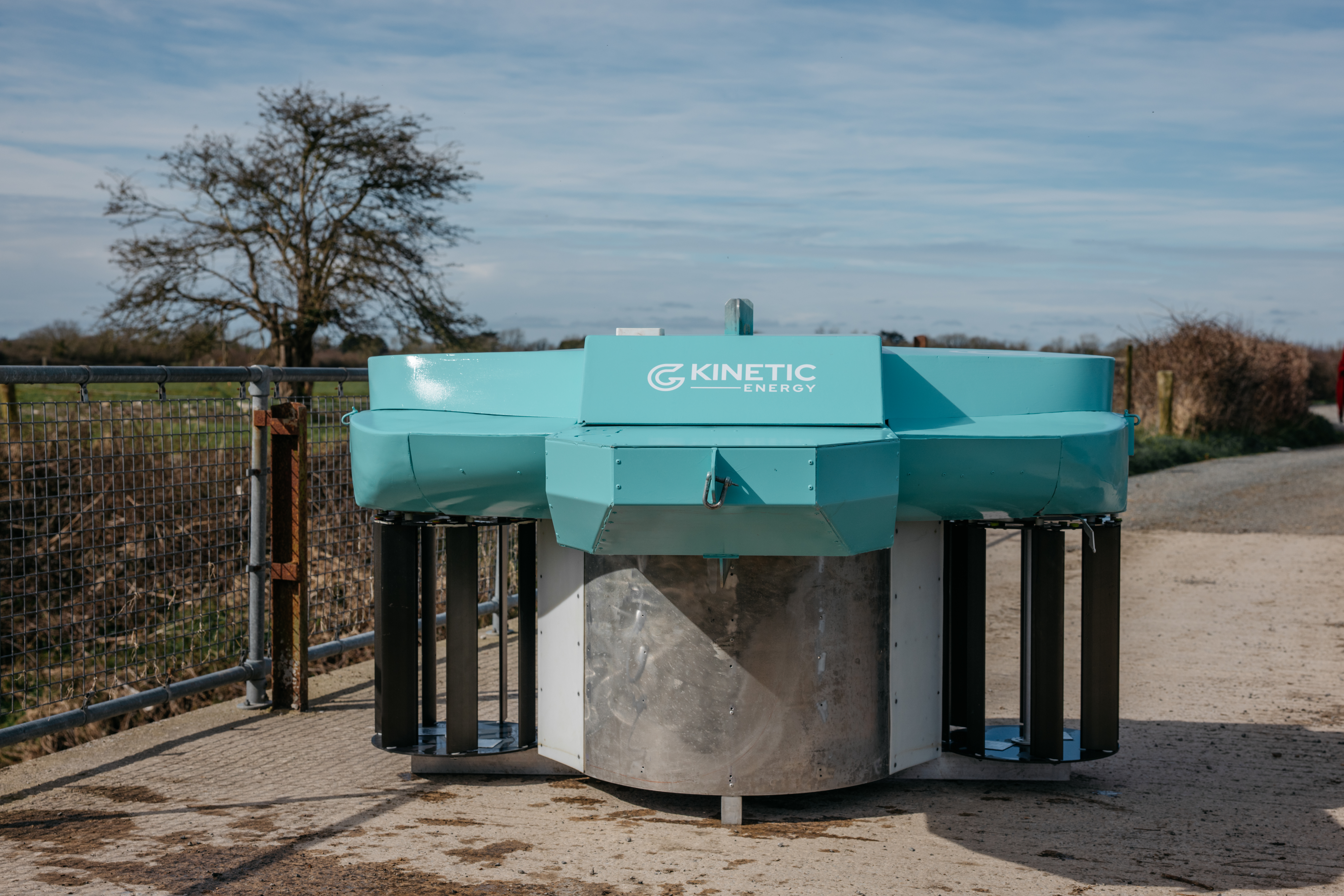

The core device is a floating, twin vertical axis, hydrokinetic energy converter, capable of generating 3kW of power. Measuring 2.1m in width and length and a 1m draft, it comprises a floating platform, with a central bluff body underneath which directs water onto two vertical axis rotors.

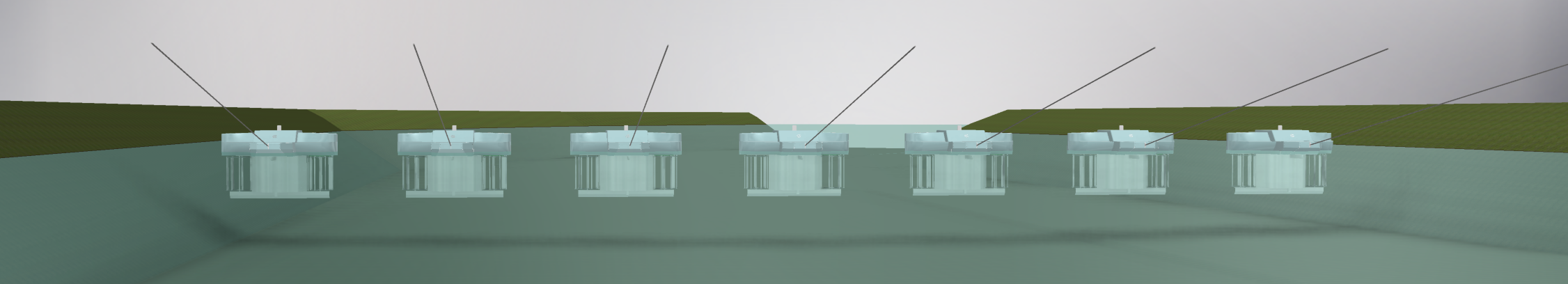

The deployment in lateral array simplifies installation and power transmission. In addition, to maximize energy production, it will locally accelerate the water as it passes between the generator rotors but return to free-stream speeds after. Much like water speeding up going through the columns under a bridge.

The system can be sized depending on the available resource and power requirements at the selected site.

The technology has been proven individually in lab and field conditions. GKinetic seek opportunities for a pilot array deployment to prove the technology in a real world environment.

GKinetic's commitment to protecting the environment is demonstrated in the design of components used in this technology. Underwater bearings designed by GKinetic contain no oils or contaminants which could damage water quality. Gearboxes used are sealed units of very reputable quality which contain biodegradable, food safe oil.
